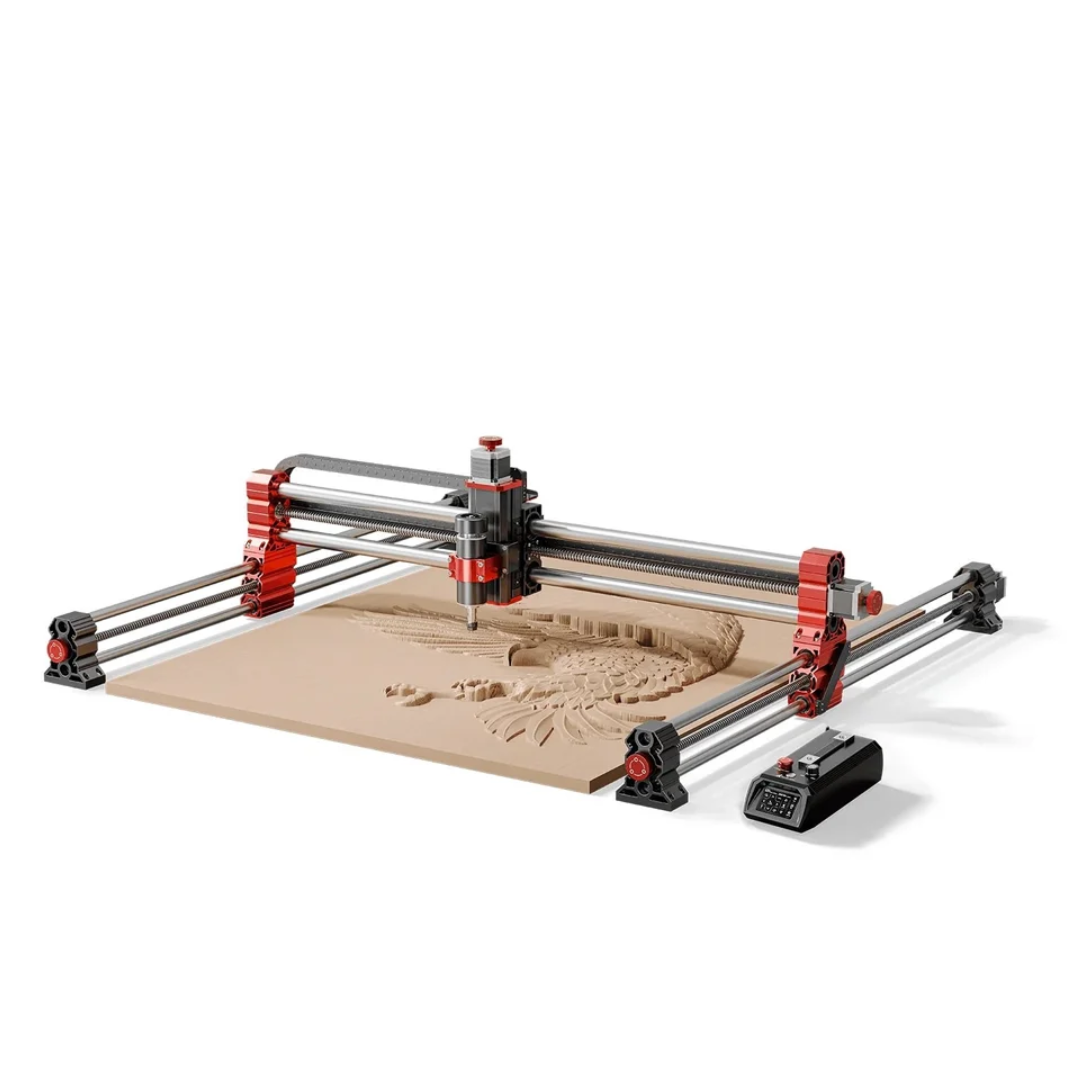

Brights Nest FusionCut 4000 (Upgraded) | World’s Most Affordable 3X Laser + 200W CNC + 3D Printer Workstation

Industrial Power. Unlimited Creation.

3-in-1 Modular System
FusionCut 4000 integrates a precision CNC router, high-power laser module, and full-color 3D printing capability into one open modular platform. Cut, carve, engrave, or produce detailed multi-color 3D prints - all from a single machine engineered for production-level performance and creative flexibility.

Multi-Color Printing Head ( Upgraded )

Seamless Color Integration

The modular multi-color print head enables smooth transitions between materials and colors within a single build. Ideal for branding elements, complex models, and detailed prototypes, it expands creative capability without requiring post-assembly or manual material swaps.

3 in 1 Modular by Design

Swap & Create
Switch between CNC and laser modules in seconds. No recalibration, no tools required. FusionCut 4000 adapts instantly to your workflow, making experimentation fast, easy, and endlessly fun.

Up to 100 W Laser Power

Pure Performance
From delicate surface etching to deep material cutting, the high-power laser module delivers precision across wood, acrylic, leather, and coated metals - maintaining perfect edges at every watt.

Enhanced 4W Laser Upgrade

Sharper Detail. Deeper Contrast.
Upgraded 4W output delivers stronger marking intensity, improved tonal depth, and cleaner line definition across metals and specialty materials - expanding creative range beyond traditional metal applications.

Production-Grade Precision

Engineered for Consistency

Built for reliable, repeatable output, the system delivers print precision in the 0.1–0.3 mm range with adjustable layer thickness from 0.08 - 0.32 mm. Whether producing prototypes or functional components, every layer is deposited with controlled accuracy to maintain dimensional integrity and surface quality.

Open-Frame 3D CNC

Built for Makers
The rigid aluminum chassis and open-bed layout give full visibility and freedom to work on large or irregular materials. Ideal for prototyping, signage, furniture parts, and artistic fabrication.

Smart Precision Control

Adaptive System
Intelligent motion algorithms balance spindle torque and laser output automatically. Expect ultra-smooth curves, consistent depth, and reduced vibration across every job.

Industrial-Grade Durability

Heavy-Duty Motion
Equipped with dual ball-screw drives and reinforced linear rails, FusionCut 4000 ensures long-term accuracy even under continuous operation. Designed to run all day, every day.

Safe, Efficient Operation

Integrated Protection
Real-time temperature monitoring, emergency-stop safeguards, and automatic power-cut sensors protect both operator and workspace. Efficiency meets peace of mind.

Craft Without Limits

Professional Results
Whether cutting complex molds, engraving detailed panels, or building custom parts, FusionCut 4000 gives you industrial capability and creative control in one compact system.

Technical Specifications

Build & Structure

Body Material: Industrial-grade aluminum alloy frame with stainless-steel guide rods
Manufactured In: China

Available Configurations

• V1: 30W Fiber (MOPA) + 20W Diode + CNC
• V2: 60W Fiber (MOPA) + 25W Diode + CNC + 3D Color Printing Module
• V3: 100W Fiber (MOPA) + 40W Diode + 4W Infrared Laser + 200W CNC + 3D Color Printing Module

Dimensions & Weight

Gross Weight

• V1: ≈ 43.9 kg
• V2: ≈ 60 kg
• V3: ≈ 80 kg

Engraving Area

• V1: 1000 × 1000 × 100 mm (39.4″ × 39.4″ × 3.9″)
• V2: 1000 × 2000 × 100 mm (78.7″ × 39.4″ × 3.9″)
• V3: 2000 × 2000 × 100 mm (78.7″ × 78.7″ × 3.9″)

Product Dimensions

• V1: 1292 × 1290 × 404 mm
• V2: 1920 × 1292 × 425 mm
• V3: 2336 × 1292 × 425 mm

Laser & CNC Performance

Laser Power

• V1: 30W Fiber (MOPA) + 20W Diode
• V2: 60W Fiber (MOPA) + 25W Diode
• V3: 100W Fiber (MOPA) + 40W Diode + 4W Infrared Laser

Infrared Laser (V3 Only)

• Power: 4W
• Designed for enhanced metal marking and precision detailing on reflective materials

CNC Spindle Power

• V1: 500 – 800W
• V2: 800 – 1500W
• V3: 200W Precision CNC Module (High-stability finishing unit)

Maximum Speed

• V1: 1800 mm/min
• V2: 2000 mm/min
• V3: 2500 mm/min

Engraving Accuracy:

• ±0.05 mm (V1–V2)
• ±0.03 mm (V3)

Integrated 3D Color Printing Module

(Available in V2 & V3 Only)

Performance

• Maximum Speed: Up to 500 mm/s
• Acceleration: Up to 10,000 mm/s²
• Flow Rate: Up to 35 mm³/s
• Print Precision: 0.1 – 0.3 mm
• Layer Thickness: 0.08 – 0.32 mm

Extrusion System

• Extruder: Single-head dual-gear direct drive
• Default Nozzle: 0.4 mm
• Supported Nozzles: 0.6 mm / 0.8 mm / 1.0 mm
• Nozzle Type: Hardened steel (1 installed + 1 spare)
• Filament Diameter: 1.75 mm
• Max Print Temperature: 300°C
• Platform Temperature: Up to 120°C

Print Platform & Control

• Magnetic flexible double-sided PEI build plate
• Automatically adjusted belt tension
• 4 independent Z-axes
• 25-point grid auto-leveling
• Fully enclosed transparent acrylic shell
• High-efficiency activated carbon filtration

3D Printing Materials

Supports:

PLA · PETG · TPU · ABS · ASA · PP · PC · PA-GF · PA-CF · Glass Fiber Reinforced · Carbon Fiber Reinforced

Systems & Control

Motion System

• V1: Dual-motor linear-rail drive
• V2: Precision ball-screw system
• V3: Heavy-duty dual ball-screw with reinforced stability frame

Touchscreen Interface

• Motion control
• Speed control
• CNC/Laser/3D Print switch
• Language selection
• Online help

V2 Adds: Work preview + power synchronization
V3 Adds: Real-time job tracking + diagnostics

Cooling System

• V1: Air Cooling
• V2: Hybrid Air/Water Cooling
• V3: Dual Water Cooling with Thermal Regulation

Material Compatibility

V1

Plywood · MDF · Acrylic · Leather · Carbon Fiber · Aluminum Alloy

V2

All V1 materials + Copper & Brass

V3

All V2 materials + Stainless Steel · Titanium · Reflective Metals (via Infrared Laser)

Connectivity

• V1 & V2: USB · Wi-Fi 2.4GHz · TF Card
• V3: USB · Wi-Fi · LAN · TF Card

Supported Software

• V1: FreeCAD · Carveco · ArtCAM · Easel
• V2: + LightBurn
• V3: + Fusion 360

Safety & Operation

• Fully shielded laser enclosure
• Real-time temperature monitoring
• Automatic emergency stop & power-cut protection
• Certified protective eyewear included
• CE & FCC compliant

What’s in the Package

Included in Every Version

• Brights Nest FusionCut 4000 Machine × 1
• CNC Spindle Module × 1
• Drill Bit Set × 1
• Earmounted Ear Muffs × 1
• Tool Setter × 1
• AC Power Cord × 1
• Cross Screwdriver × 1
• Long Wrench Set × 1
• USB Drive (TF Card) × 1
• Tool Box × 1
• Open-End Wrench Set × 1
• MDF Board × 1
• USB Extension Cable × 1
• Laser Safety Goggles × 1
• Nylon Brush × 1
• Zip Ties × 1
• PP Board × 1

Additional for V2 & V3

• 3D Color Printing Head Module × 1
• Dual-Gear Extruder System × 1
• Hardened Steel Nozzle Set × 1
• Activated Carbon Filtration Unit × 1

Additional for V3

• 4W Infrared Laser Module × 1
• 200W Precision CNC Finishing Module × 1
• Advanced Cooling Assembly × 1
